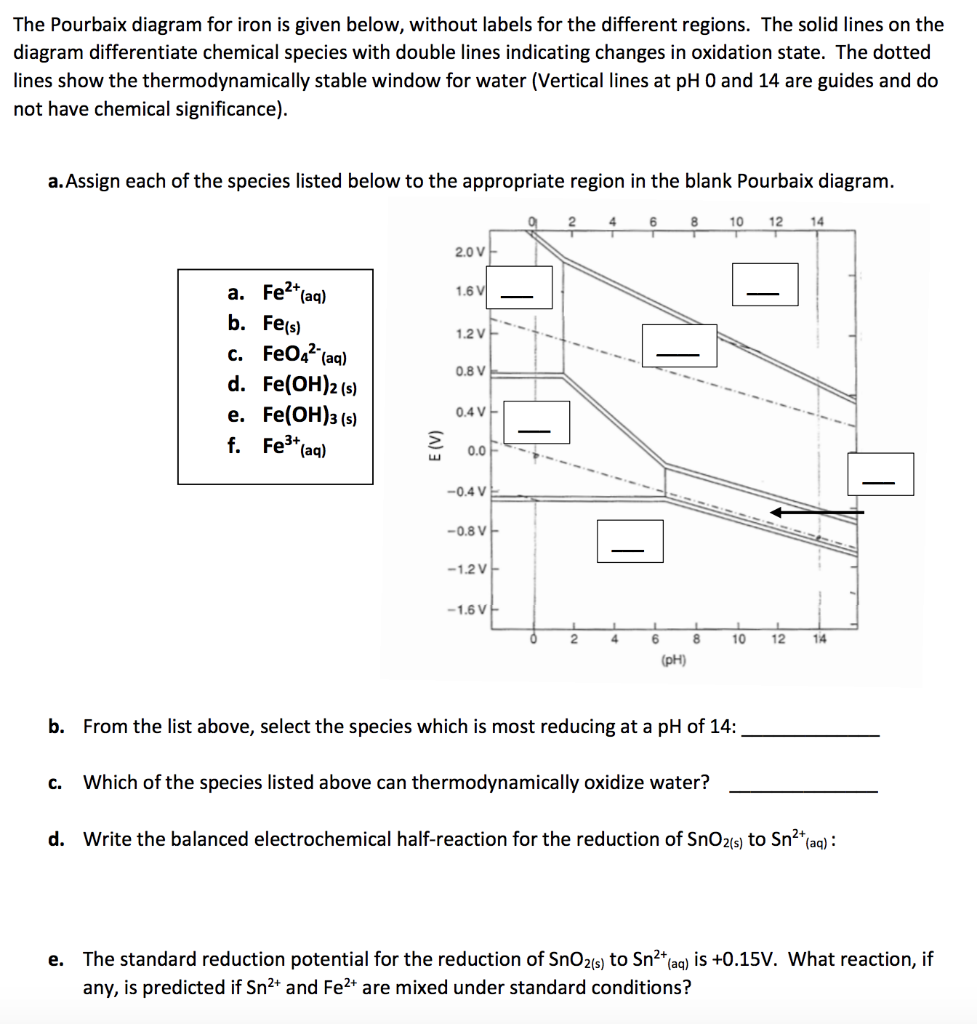

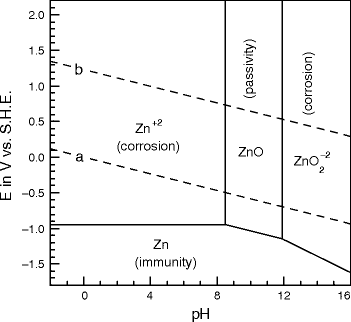

The Pourbaix diagram for iron is shown in Fig. 3 marks b Briefly explain how lines a and b are drawn in Figure 3.

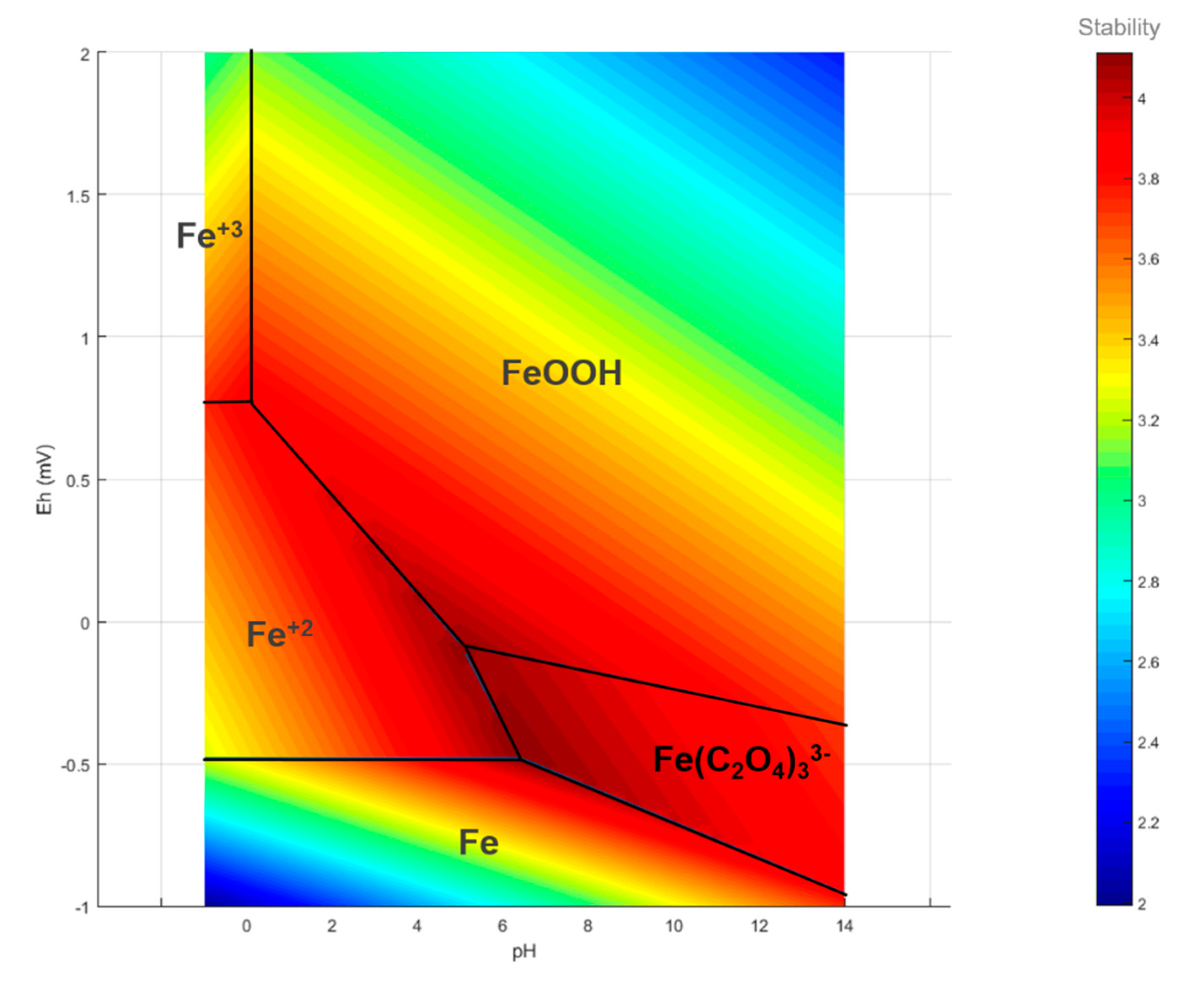

Iron E Ph Pourbaix Diagram
Indicate the significance of these lines when iron corrodes in water.
. The same applies for FeX2FeX3 F e X 2 F e X 3 with 077 V 077 V. Particular attention is paid to the easy-to-understand creation of Pourbaix diagrams their uses and limitations of this tool. The following reactions were used to.
All dissolved species are assumed to have activities of 1 M. Web To plot a Pourbaix diagram the relevant Nernst equations are used. In electrochemistry and more generally in solution chemistry a Pourbaix diagram also known as a potentialpH diagram EHpH diagram or a pEpH diagram is a plot of possible thermodynamically stable phases ie at chemical equilibrium of an aqueous electrochemical system.
In addition the basics of electrochemical kinetics are dealt with to provide an overview of the. 1 indicates the areas of immunity passivity and corrosion of iron in the function of potential and pH. These diagrams are closely related to the stability field.
From Wikipedia the free encyclopedia. Constructing a Pourbaix Diagram. Pourbaix diagrams depict the most stable species or phase of an element in aqueous solution as a function of potential on the y-axis and pH on the x-axis.
To plot a Pourbaix diagram. Web Self-limited growth of an oxyhydroxide phase at the Fe3O4 001 surface in liquid and ambient pressure water. Experimental measurements of potential and corrosion rate up to 473 K were performed to compare with the ET diagrams.
605 540 pixels 269 240 pixels 538 480 pixels 861 768 pixels 1147 1024 pixels 2295 2048 pixels. Web Replicated Pourbaix diagram for the iron-water system α Fe 2 t0 10 6 M. Bold solid lines show boundaries between two solid species thin solid lines show boundaries between one solid.
Pourbaix diagrams have several uses including in corrosion studies. Web Pourbaix Diagram for Iron. Web This article deals with the basics of corrosion and corrosion protection with the focus on equilibrium thermodynamics.
Temperature extrapolations of thermochemical data for aqueous species have been performed with the revised. The diagram is plotted at 25 C. But FeFeX3 F e F e X 3 is 003 V 003 V but its not on the graph as a line.
A Pourbaix diagram is also known as a potentialpH diagram. This diagram is of considerable interest because of the widespread use of iron and its alloys as structural materials. Web FilePourbaix Diagram of Ironsvg.
The Pourbaix diagrams potential pH diagrams for iron at 25300 C have been revised. Web Download scientific diagram Pourbaix diagram for iron from publication. Figure 3 shows a Pourbaix diagram for iron in water at 25C.
Developed by the French electrochemistry Pourbaix. Web The aim of this paper is to develop such diagrams for iron nickel and chromium as the most involved elements in material selection for the cooling system of supercritical water reactor. Areas in the Pourbaix diagram mark regions where a single species Fe 2 aq Fe 3 O 4 s etc is stable.
The selection of thermochemical data has taken into account the experimental solubility of magnetite at T 100300 C. Pure redox reactions are horizontal lines - these reactions are not pH-dependent. Web What Does Pourbaix Diagram Mean.
SVG file nominally 605 540 pixels file size. These diagrams are available for over 70 different metals. More stable species tend to occupy larger areas.
Lines mark places where two species exist in equilibrium. Web Up to 3 cash back Pourbaix diagram for Iron. Size of this PNG preview of this SVG file.
Chemical water quality changes along a stream at an abandoned Pb-Zn minig site In this study chemical water quality. A Pourbaix diagram provides information about the stability of a metal as a function of pH and potential. It gives no information about the kinetics of the corrosion process.
Iron can undergo corrosion in acid or neutral solutions in two different oxidation states ie Fe 2 or Fe 3. Web A potential-pH diagram for iron Pourbaix diagram shown in Fig. Web Pourbaix or potential-pHE-pH diagrams were developed and popularized by Marcel Pourbaix who used them to study corrosion.
The Pourbaix diagram for redox chemistry is a type of combination redoxpH predominance diagram. Web The Pourbaix diagram for iron is constructed by using nine reduction and oxidation reactions over a pH range of 0-14. As the Nernst equation is derived entirely from thermodynamics the Pourbaix diagram can be used to determine which species is thermodynamically stable at a given E and pH.
For waterincluding either the main EpH lines from the water diagram or both the main and. A Briefly explain the three different regions in Figure 3. Web Pourbaix diagram of iron Source The line between Fe F e and FeX2 F e X 2 is there because the potential FeFeX2 F e F e X 2 is 044 V 044 V.
Boundaries 50 50 between the predominant chemical species aqueous ions in solution or soli. A new experimental setup for the ultrahigh vacuum-compatible dosing of liquids is utilized to explore the stability of the Fe3O4 001- 2 2R45 surface following exposure to liquid and ambient pressure water and concludes. Web The Pourbaix diagram can be thought of as analogous to a phase diagram of an alloy which plots the lines of equilibrium between different phases as temperature and composition are varied.
